Products

Pipes

1. ERW PIPE

ERW pipes (Electric Resistance Welding) are extremely versatile. That’s why they’re commonly used in many industries from gas to sewage. They also come in a variety of types and sizes. And they can easily be customized to fit the needs of a particular project, adding even more to its versatility. Truth be told it’s near impossible to find an industry that does not use steel pipe in some capacity.

ERW CARBON STEEL PIPES

Standard - Grade	A 53 GR A – A 53 GR B – API 5L GR B (Dual Specification)
Size Range	ERW: (Electric Resisting Welding): From1/2” up to 24” SPW: (Spiral Welding): From 18” up to 100” SAW: (Submerge Arc Welding): From16”up to 60”
Length	6m,12m, DRL
Schedule	10 to XXS

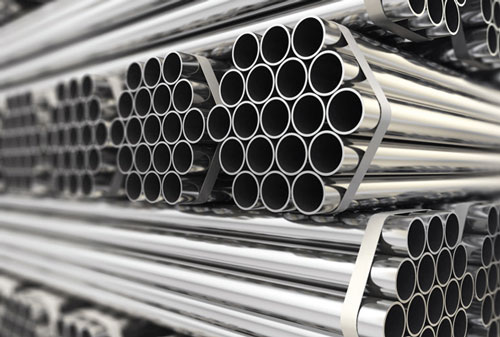

ERW STAINLESS STEEL PIPES

Standard - Grade	A 312 WELDED ERW Grade 316/316, 304/304
Size Range	From 1/2” up to 36”
Length	6m, 12m, SRL, DRL
Schedule	10 to XXS
Welded Types	ERW (Electric Resisting Welding ) EFW ( Electrical Fusion Welding ) SPW (Submerge Arc Welding )

2. SEAMLESS PIPES

Seamless pipe is made using a piercing rod, which gives the material a smooth and even finish with no joints. This product is considered more reliable, especially in high pressure applications.

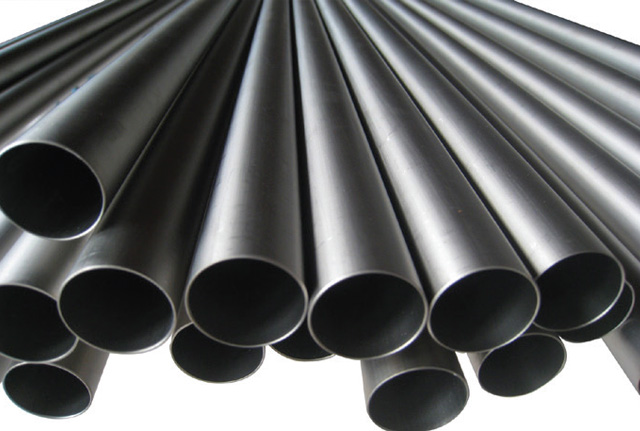

SEAMLESS CARBON PIPES

Standard - Grade	A53-B / A106 GR B /API 5L –B A333 GR 6 For Low Temperature. A335-PI-P5-P22 High Temperature.
Size Range	From 1/2” up to 24”
Length	6m,12m, SRL(Single Random Length) 5m up to 7m DRL(Double Random Length) 9m up to 13m.
Schedule	10 to XXS

SEAMLESS STAINLESS STEEL PIPES

Standard - Grade	ASTM Category 312 Grade 316/316 l 304/304 l
Size Range	From 1/2” up to 24”
Length	6m,12m, SRL (Signal Random Length) 5up to7m DRL (Double Random Length ) 9 up to13m
Schedule	10 to XXS

FITTINGS

The basic purpose of using pipe fittings in pipe systems is to connect the bores of two or more pipes or tubes. Pipe fittings are used in piping systems normally to connect straight pipe or tubing sections, to adapt to different sizes or shapes, to branch or re-direct the piping system, if necessary to provide a jointing method if two dissimilar piping materials are used in the one system and for other purposes such as regulating, measuring or changing the direction of the fluid flow or to connect up threaded pipe and equipment. They are also used to close or seal a pipe.

1. CARBON STEEL FITTINGS

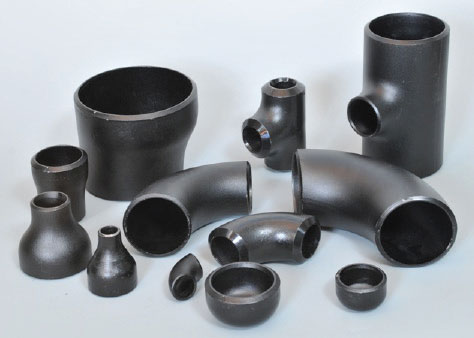

Butt Welded Carbon Steel Fittings

Standard - Grade	A 234 WPB 420WPL (Low Temperature).
Size Range	From 1/2” Up To 60”
Finish	Black
Schedule	10, 20, 30, std, 40, 60, xs.80.100.120.140.160.xxs

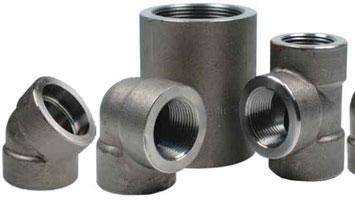

Forged Carbon Steel Fittings

Standard - Grade	105 N , 350 LF1, LF2, LF3 .. (Low Temperature).
Size Range	From 1/8”up to 4”
Finish	Black or Galvanized
Connection Type	NPT & (Threaded) & SW (Socket Weld)
Class Pressure	2000-3000-6000 (Psi)

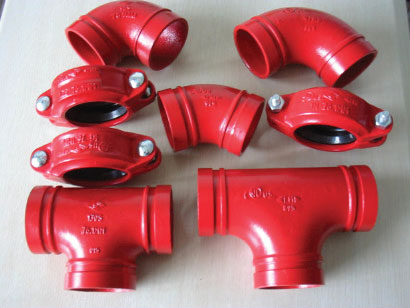

Grooved Carbon Steel Fittings

Standard - Grade	ASTM A-536. (Nuts and bolts ASTM A-183 or A-449)
Size Range	1/2” up to 24”
Finish	Red Colour
Material & class pressure	Ductile iron , 150 - 1000

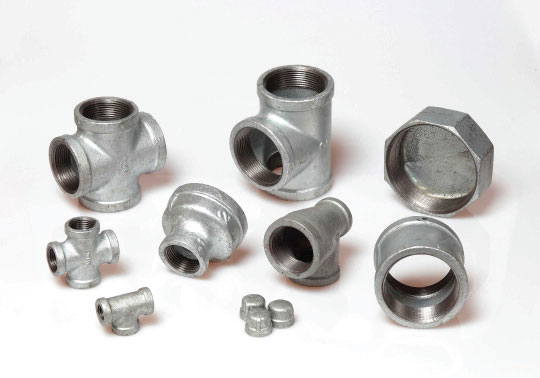

Malleable Iron Threated Fittings

Standard - Grade	A197
Size Range & class	1/8” up to 6”( 150- 300)
Finish	Black Malleable Iron (BMI) Galvanized Malleable Iron (GMI).
Connection Type	NPT / BSPT (The thread angle is 60° for NPT threads: 55° for BSPT/BSPP threads)

2. STAINLESS STEEL FITTINGS

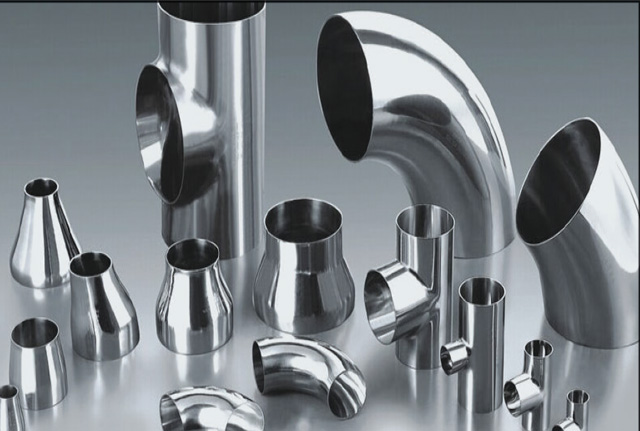

Butt Welded Stainless Steel Fittings

Standard - Grade	A 403
Size Range	From 1/2” up To 36”
Schedule	10,20,30,STD,40,60, XS ,80,100,120,140,160 & XXS
Finish	304/304L & 316/316L

3. FLANGES & ACCESSORIES

Carbon Steel Flanges

Standard - Grade	A105 - A350 (Low Temperature)
Size Range	From 1/2” up to 60”
Class	150, 300, 600, 900-1500-2500-3000

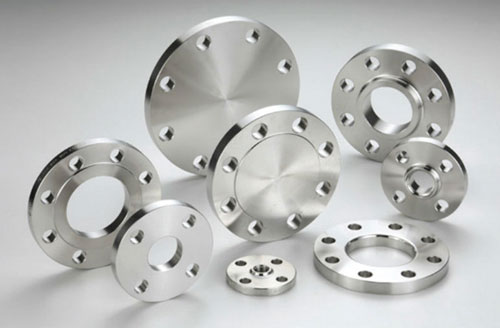

Stainless Steel Flanges

Standard - Grade	A182
Size Range	From 1/2” up to 60”
Class	150,300,600,900,1500,2500,3000
Flanges Tack Class & Schedule	W/N - S/W

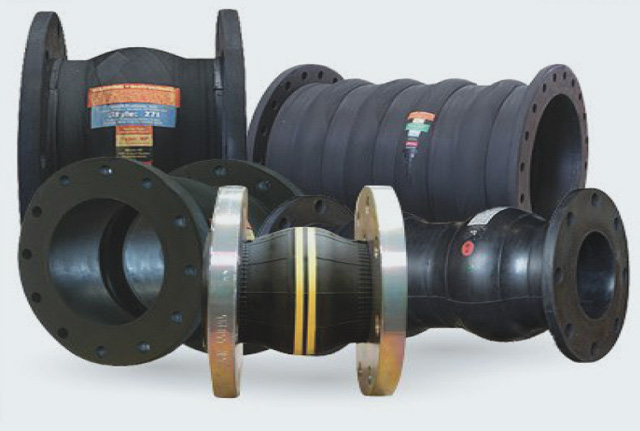

4. RUBBER EXPANSION JOINT

Rubber Expansion Joint

Standard - Grade	14000kg / m2
Size Range	From 1/2” x 2” up to 25 mm From 1/2”x 5” up to 38 mm 6” to above up to 50 mm
Finish	Rubber
Material	Compounded Rubber

FASTENERS

A pipe fastener is a device that mechanically joins or affixes two or more pipes together. Pipe fasteners cover both high tensile and mild steel bolts, clamps, nuts, screws, washers studs, pins etc. All types of fasteners are used for both industrial and residential pipe fittings. Pipe fasteners are used in almost all types of industries. They are made of various materials and are available in various shapes, sizes, and designs.

1. PIPE SUPPORT

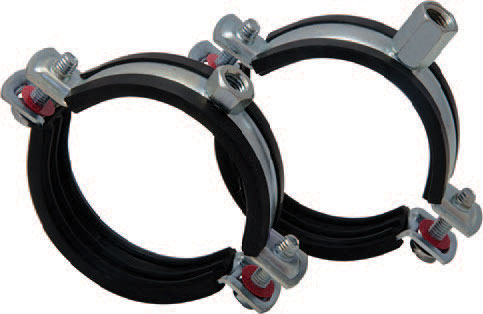

Pipe Clamp

Standard - Grade	ww-h-1716 ,MSS SP- 69 &SP58
Size Range	From 1/2” up to 8”
Finish	Plain or Hot Dip Galvanized
Material	Steel Axle with Cast Iron Roller

Clevis Hanger

Standard - Grade	DIN 934
Size Range	From 1/2” up to 24”
Finish	Zinc Colored Epoxy Plated : Zinc Colored Epoxy Plated
Material	Carbon Steel

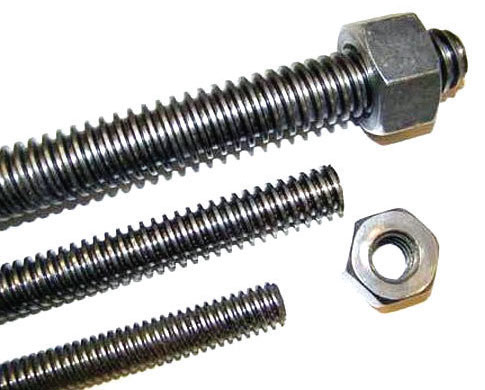

Studs & Threaded Rod

Standard - Grade	Metric, UNC, UNF, BSW, BSF
Size Range	From 1” up to 8”
Material	Carbon steel

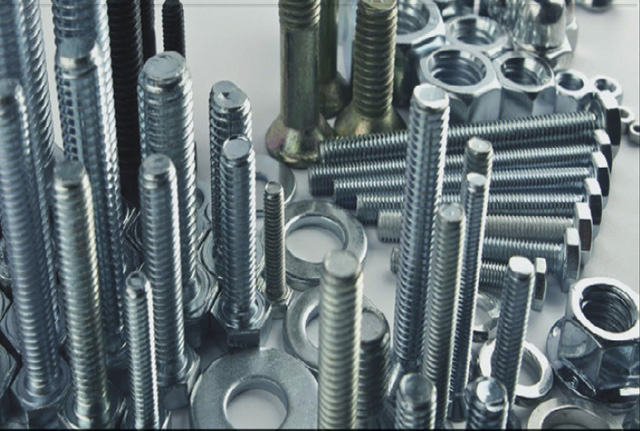

2. BOLTS – NUTS – WASHERS

BOLTS – NUTS – WASHERS

Standard - Grade	1363/ IS :1364
Size Range	From 1/2” up to 8”

VALVES

Valves are mechanical devices that controls the flow and pressure within a system or process. They are essential components of a piping system that conveys liquids, gases, vapors, slurries etc... Different types of valves are available like gate, globe, butterfly, check, pressure relief, control valves etc. Each of these types has a number of models, each with different features and functional capabilities. Some valves are self-operated while others manually or with an actuator or pneumatic or hydraulic is operated.esigns.

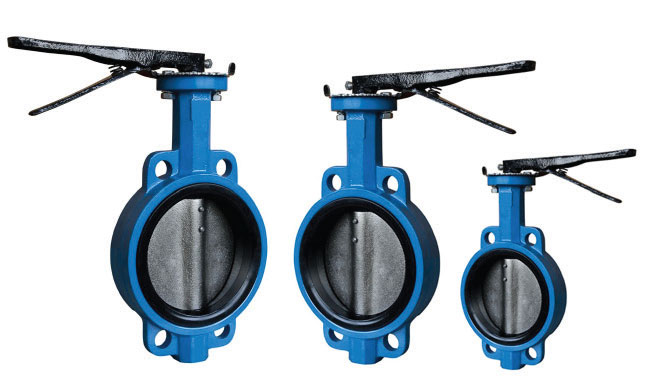

1. BUTTERFLY VALVE

Grade	ASTM A126 CLASS - B
Size Range	From 2”up to 14”
Material	Cast Iron & Ductile Iron
Working Pressure	200 (PSI)

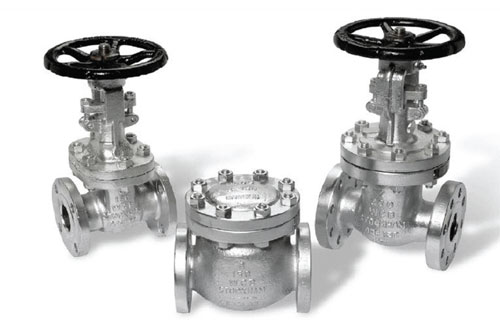

2. GLOBE VALVE

Grade	ASTM B62 C83600 & BS 1400 LG2
Size Range	From 1/2” up to 2”
Material	BRONZ, BRASS, & CAST IRON
Working Pressure	300 (PSI)

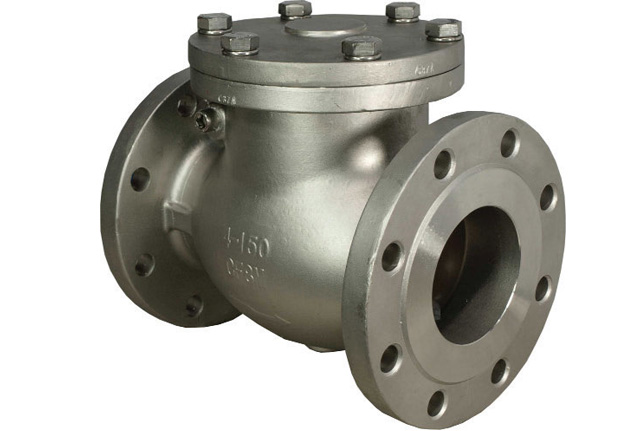

3. CHECK VALVE

Grade	ASTM B62 C83600 & BS 1400 LG2
Size Range	From 1/2” up to 2”
Material	NBR SEAT
Working Pressure	300 (PSI) 20.7 (BAR)

4. GATE VALVE

Grade	ASTM B62 C83600 & BS 1400 LG2
Size Range	From 1/2” up to 4”
Material	BRONZE ,BRASS, & CAST IRON
Working Pressure	300 (PSI)

All other sizes and grades are available upon request.

COMMERCIAL STEEL

Steel is both the most widely used and most recycled metal material on earth. From stainless and hot rolled steels to flat carbon products, steel in its various forms and alloys offer different properties to meet a wide range of applications.For these reasons, as well as the metal’s combination of high strength and a relatively low production cost, steel is now used in countless products.

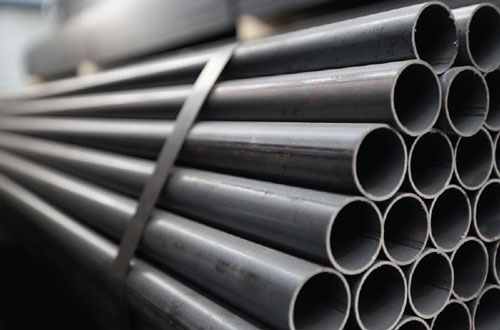

5. BLACK PIPES

Size Range	From 1/2” uo to 48”
Length	6m,12m
Thickness	From 0.9mm up to 12mm

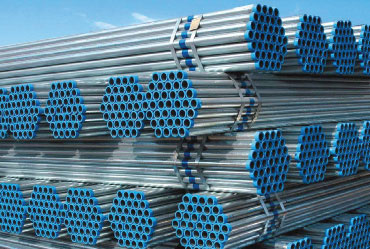

6. GI PIPES

Size Range	From 1/2” uo to 48”
Length	6m,12m
Thickness	From 1.2mm up to 12mm

7. SQUARE TUBES

Size Range	From 12 X 12 up to 400 X 400
Length	6m,12m
Thickness	From 1.2mm up to 12mm

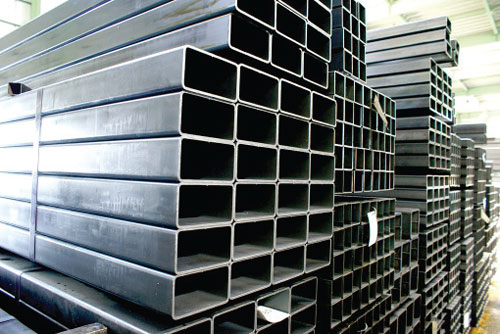

8. RECTANGULAR TUBES

Size Range	From 15 X 30 up to 200 X 400
Length	6m,12m
Thickness	From 1.2mm up to 12mm

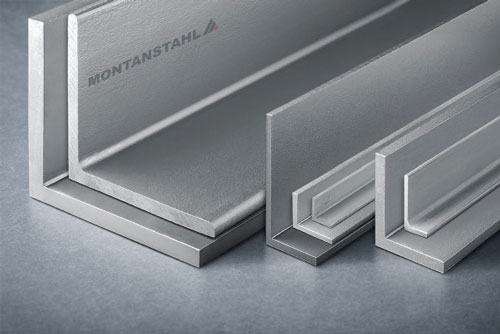

9. EQUAL & UN-EQUAL ANGLES

Size Range	EA 20 x 20 x 2 - 200 x 200 x 20 UEA 40 x 20 x 4 - 200 x 100 x 15
Length	6m- 12m
Thickness	From 2 mm up to 20 mm
Grades	EN 10025 S275JR / S355JR: 1993 /ASTM A36 / A572 GR 50 / ST 44-2 ST52-3 / JIS G 3101 SS400 - 1995

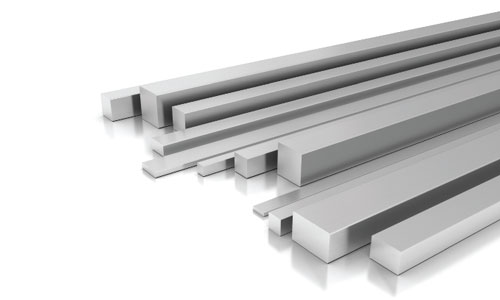

10. FLAT & SQUARE BAR

Width	12x3 – 300 x50 , 6x6 – 100x100
Length	6m
Thickness	3mm

PVC & SANITARY ACCESSORIES

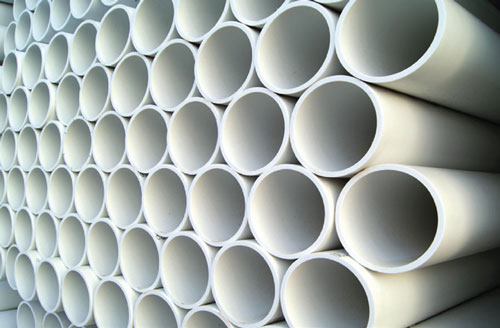

1. PVC PIPES

Material	UPVC & CPVC
Size Range	From 1/2” up to 8”
Length	6m
Schedule	SHC 40 & SCH 80

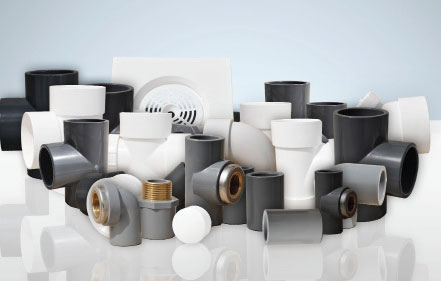

2. PVC FITTINGS

Material	UPVC & CPVC
Size Range	From 1/2” up to 8”
Finish	ELBOW,COUPLING,TEE,WYE eq, ELBOW DOOR, P-TRAP, TEE CROSS, TEE SANITARY FLOOR, END CAP,…
Schedule	SHC 40 & SCH 80

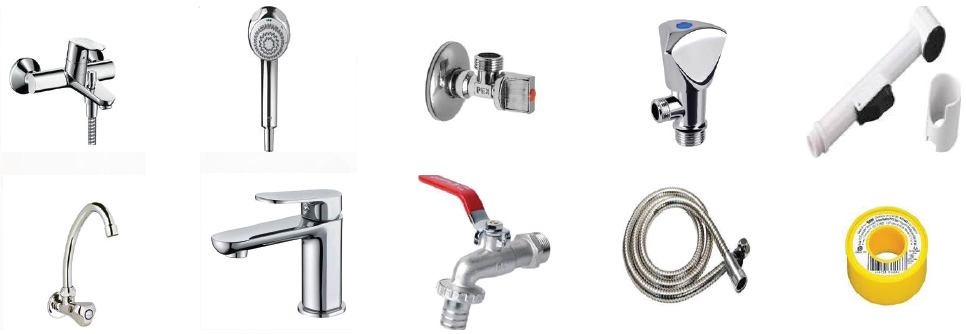

4. SANITARY ACCESSORIES

More items and different brands are available upon request.

JASCO GREEN FENCE

Now, you can transform the outdoor space of any unit you own (house – garden – office) into a better design by installing the JASCO GREEN FENCE.

JASCO GREEN FENCE is characterized by a mixture of aesthetic appearance by improving the visual pollution of the place due to its green color, which is comfortable to look at, and providing privacy by preventing intrusion on the other side, in addition for helping to provide good ventilation for the place, because of the presence of small spaces between the mesh fence on which the grass is installed.

Applications

Previous image

Next image

Features

Specifications

Material

Galvanized Wire

Grass Fibers

PVC Film Thickness

Color

Roll Size

Height

Standard Length

Installation

Our installation team can install JASCO GREEN FENCE on ground, on wood, stone, concrete wall, and steel frames according to required size by using following accessories:
